evtcallback.hpp File Reference

Interfaces for ITkPix decoder event callback. More...

#include <cstdint>

Include dependency graph for evtcallback.hpp:

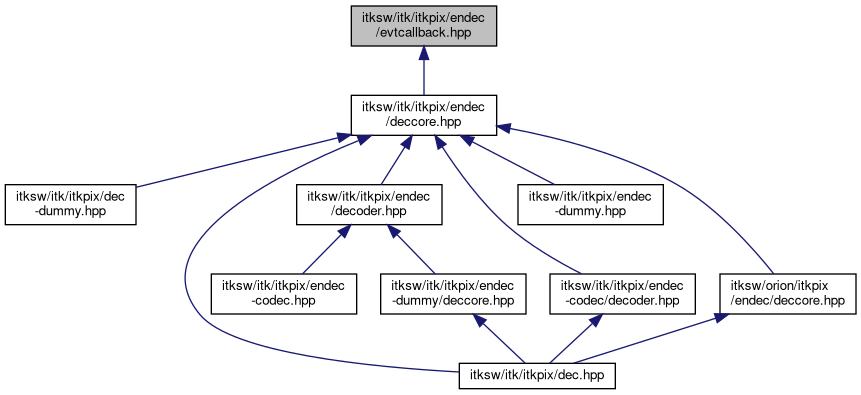

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	itk::itkpix::endec::EventError
	Callback on event decoding error. More...
class	itk::itkpix::endec::intf::EventCallback
	Callback interface for event. More...

Variables
template<typename T >
concept	itk::itkpix::endec::concepts::EventCallback

Detailed Description

Interfaces for ITkPix decoder event callback.

Variable Documentation

EventCallback

template<typename T >

concept itk::itkpix::endec::concepts::EventCallback

Initial value:

=
  std::destructible<T> and
  requires(T self, uint8_t tag) {
    { self.evt_init(tag) } -> std::same_as<void>;
    { self.evt_next(tag) } -> std::same_as<void>;
  } and
  requires(T self) {
    { self.evt_done() } -> std::same_as<void>;
  } and
  requires(T self, uint16_t col, uint16_t row, uint16_t tot) {
    { self.add_hit(col, row, tot) } -> std::same_as<void>;
  } and
  requires(T self, uint8_t qcol, uint8_t qrow, uint16_t hmap, uint64_t tots) {
    { self.add_hmap(qcol, qrow, hmap, tots) } -> std::same_as<void>;
  } and
  requires(T self, uint8_t qcol, uint8_t qrow, uint64_t qtot) {
    { self.add_qcore(qcol, qrow, qtot) } -> std::same_as<void>;
  } and
  requires(T self, EventError error) {
    { self.on_error(error) } -> std::same_as<uint8_t>;
  }
