itk::itkpix::endec::intf::EventCallback Class Reference

Callback interface for event. More...

#include <evtcallback.hpp>

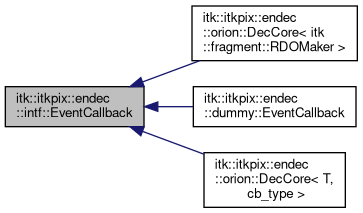

Inheritance diagram for itk::itkpix::endec::intf::EventCallback:

Public Member Functions
virtual	~EventCallback ()=default
	Destructor.
virtual void	evt_init (uint8_t tag)=0
	Initialize a new stream and create a new event. More...
virtual void	evt_next (uint8_t tag)=0
	Complete the event and start the next one. More...
virtual void	evt_done ()=0
	Complete the event and finalize the stream.
virtual void	add_hit (uint16_t col, uint16_t row, uint16_t tot)=0
	Add hit. More...
virtual void	add_hmap (uint8_t qcol, uint8_t qrow, uint16_t hmap, uint64_t tots)=0
	Add quarter core: rawmap is decoded, tots are not decoded. More...
virtual void	add_qcore (uint8_t qcol, uint8_t qrow, uint64_t qtot)=0
	Add quarter core: tots are decoded to 64 bit qtot, no-hit marked as 0xF. More...
virtual uint8_t	on_error (EventError error)=0
	Callback on decoding error. More...

Detailed Description

Callback interface for event.

Member Function Documentation

add_hit()

virtual void itk::itkpix::endec::intf::EventCallback::add_hit ( uint16_t  col, uint16_t  row, uint16_t  tot  )

pure virtual

Add hit.

Parameters

col	- column
row	- row
tot	- tot

Implemented in itk::itkpix::endec::dummy::EventCallback.

add_hmap()

virtual void itk::itkpix::endec::intf::EventCallback::add_hmap ( uint8_t  qcol, uint8_t  qrow, uint16_t  hmap, uint64_t  tots  )

pure virtual

Add quarter core: rawmap is decoded, tots are not decoded.

Parameters

qcol	- quarter core column
qrow	- quarter core row
hmap	- decoded 16 bit hitmap
tots	- undecoded ToT bits

Implemented in itk::itkpix::endec::dummy::EventCallback.

add_qcore()

virtual void itk::itkpix::endec::intf::EventCallback::add_qcore ( uint8_t  qcol, uint8_t  qrow, uint64_t  qtot  )

pure virtual

Add quarter core: tots are decoded to 64 bit qtot, no-hit marked as 0xF.

Parameters

qcol	- quarter core column
qrow	- quarter core row
qtot	- decoded 16x4 bits of ToT according to hitmap, no-hit marked as 0xF

Implemented in itk::itkpix::endec::dummy::EventCallback.

evt_init()

virtual void itk::itkpix::endec::intf::EventCallback::evt_init ( uint8_t  tag )

pure virtual

Initialize a new stream and create a new event.

Parameters

tag	- trigger tag of a new event

Implemented in itk::itkpix::endec::dummy::EventCallback.

evt_next()

virtual void itk::itkpix::endec::intf::EventCallback::evt_next ( uint8_t  tag )

pure virtual

Complete the event and start the next one.

Parameters

tag	- trigger tag of a new event

Implemented in itk::itkpix::endec::dummy::EventCallback.

on_error()

virtual uint8_t itk::itkpix::endec::intf::EventCallback::on_error ( EventError  error )

pure virtual

Callback on decoding error.

Parameters

error

- event error

Returns

- feedback on error, 0 - continue decoding, 1 - drop the rest of the event

Implemented in itk::itkpix::endec::dummy::EventCallback.

---

The documentation for this class was generated from the following file:

• itksw/itk/itkpix/endec/evtcallback.hpp
