itkpix.hpp File Reference

Common constants and structures for ITkPix chip. More...

#include "itk/db/types.hpp"
#include "itk/db/chips/itkpix1.hpp"
#include "itk/db/chips/itkpix2.hpp"

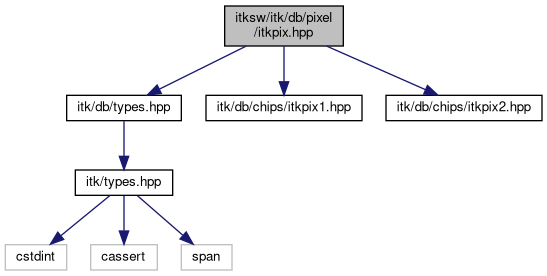

Include dependency graph for itkpix.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	itk::db::itkpix::pixmem_t
struct	itk::db::itkpix::regmem_t
struct	itk::db::itkpix::calib_t
struct	itk::db::itkpix::regmem2_t
	Register memory for ITkPix.v2 chip. More...
struct	itk::db::itkpix::regmem1_t
	Register memory for ITkPix.v1 chip. More...

Typedefs
using	itk::db::itkpix::reg_t = uint16_t

Variables
constexpr uint	itk::db::itkpix::NumRow = 384
constexpr uint	itk::db::itkpix::NumCol = 400
constexpr uint	itk::db::itkpix::NumDCol = NumCol/2

Detailed Description

Common constants and structures for ITkPix chip.
